A Cable-laid Grommet is an endless wire rope lifting sling made from one continuous length of steel wire rope, formed to make a body composed of six outer ropes around a core rope. The rope ends are tucked into the body forming the core. Due to its unique construction of one length of single rope and no terminations, a Cable-Laid Grommet is the perfect link between hook and load. It also offers the shortest possible solution in lifting.
Our Cable-laid Grommets are a perfect combination of CAM-design, machine based production and craftsmanship. This guarantees consistent quality and exact adherence to length tolerances.
The production range of diameters from 6 mm up to 500 mm (which achieves breaking loads of more than 17.000 to) and circumference lengths starting with only a few centimetres for small diameters up to 300 m for larger diameters is the perfect answer to all common requirements.
- Cable-laid Grommet with moveable sleeve

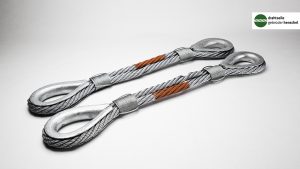

- 15 mm Ø, 0,5 m EWL, MBL 16,5 to, both end fitted with thimble DIN 3090
- 96 mm Ø, 2,5 m EWL, MBL 787 to, fitted with master-link MBL 1000 to
- 2,43 mm Ø, 940 mm circumference, MBL 4000 N
- 291 mm Ø, 21,85 m circ., CGBL 7225 to, 6359 kg
- 192 mm Ø, 63,64 m circ., CGBL 3160 to, 8285 kg

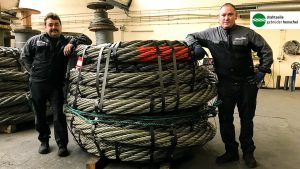

- 144 mm Ø, 110 m circ. CGBL 1848 to, 7940 kg
